Emergency exit
Emergency exits are often obligatory in public buildings, department stores and shops, cultural centres and function rooms, industrial buildings, schools and universities, embassies and many other places accessible to the…
Fire resistance EN 1634-1 : E, EI1, EI2, EW 30', 60', 90', 120', 180'
If fire breaks out, the construction elements must fulfil their function despite the effects of the fire. The stability of the structural elements must be ensured throughout the period of time needed to evacuate the building. The walls and doors that separate the various compartments of the structure must limit the spread of the fire. Heinen can confine fire for up to 180 minutes. In fire-resistant compartmentalisation, but the weak points are the building openings.
The evacuation of people and deployment of the emergency services will be more efficient if the atmosphere is clear and breathable. Thanks to intumescent seals (which swell upon contact with heat), developed by Heinen, and certified smoke tightness, Heinen doors prevent the spread of fire and often fatal smoke.
Heinen fire-resistant doors have been designed to meet your needs in exceptional dimensions, while still meeting the requirements in terms of intensive use and mechanical resistance. For example, a Heinen double door, EI1-60, can easily compartmentalise an opening of 4.40 x 4.40 m!
Heinen has always been a pioneer in fire-resistant compartmentalisation.
As early as 1973, the brand attracted attention by perfecting the world’s first metal fire-resistant door! Since 2010, Heinen doors have been validated according to European standards by no fewer than 30 official fire tests. The pace of developments and the intensive activity in the R&D department even prompted the company to purchase its own furnace that meets European standards in order to carry out pre-tests.
Standards table
| Country | Europe | Belgium | France | |||
|---|---|---|---|---|---|---|
| Standards | EN 13501-2 | EN 1634-1 | NBN 713020 + Benor Atg | Ministerial decree 03/08/99 | ||
| Symbols | E | EW | EI | Rf | CF | |
| Resistance class | E 15 E 20 E 30 E 45 E 60 E 90 E 120 E 180 E 240 |
EW 15 EW 20 EW 30 EW 45 EW 60 EW 90 EW 120 EW 180 EW 240 |
EI1 15 EI1 20 EI1 30 EI1 45 EI1 60 EI1 90 EI1 120 EI1 180 EI1 240 |
EI2 15 EI2 20 EI2 30 EI2 45 EI2 60 EI2 90 EI2 120 EI2 180 EI2 240 |
Rf 30 Rf 60 Rf 90 Rf 120 Rf… |
CF 30 CF 60 CF 90 CF 120 CF … |
| Resistance class Heinen |
E 30 E 60 E 120 E 180 E 240 Single doors : E 300 |
EW 30 EW 60 EW 120 EW 180 EW 240 Single doors : EW 300 |
EI1 30 EI1 60 EI1 120 EI1 180 |
EI2 30 EI2 60 EI2 120 EI2 180 EI2 240 |
Rf 30 Rf 60 |
CF 30 CF 60 CF 90 CF 120 |
| + tunnel doors with resistance : HCM120 / CN240 (N3) |
||||||
Heinen s products with this performance
Standards
Introduction
European fire-resistance standards have gradually taken over from the national standards and are now the reference for fire-resistance tests and classification.
The reference for fire-resistance tests on doors, shutter assemblies and windows is European standard EN 1634-1.
The resistance class is expressed in minutes, corresponding to the duration of the fire test (from 15 to 240 minutes).

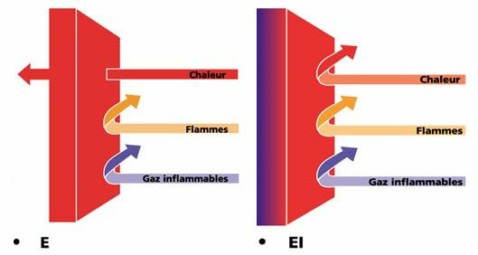

Passing the fire-resistance tests involves different categories of criteria, depending on the country:
- fire resistance (E)
- insulation (I) subdivided into 2 categories: I1 and I2
- radiation (W).
Thermal insulation I1 and I2
Insulation is subdivided into two categories which apply in different countries: I1 and I2. The I1 fire resistance tests are more stringent than the I2 tests (see additional information available for downloading below).
The E is mainly used in Anglo-Saxon countries and was previously known as ‘fire-retardant’. Example: E60
EI2 is applied in most EU countries, such as France, Germany, Italy, Spain, etc. Example: EI2-180
Belgian legislation requires EI1. Example: EI1-60
By default, if specifications indicate I without specifying 1 or 2, they usually refer to EI2. Example: EI 30 usually refers to EI2-30.
EW is required in the Netherlands. Example: EW90
To find out about the differences in tests and values between EI1 and EI2, download our documentation on fire-resistance standards!
