High performance burglar resistant doors
RC2, RC3, RC4, RC5 (EN1627-1630) & D10, E10, E20 (LPS1175)
In 80% of cases, the perpetrators first attack the door of the place to be burgled. So the door is the main element to be secured in the outer shell of the building.
Generally speaking, and whatever type of compartmentalisation is involved (burglary resistant door, fire resistant door, acoustic door, etc.) the openings into the building are the weak point.
Available burglary-resistance performances (dimensions and combinations)
Hinged doors (mortared frame) – EN1627-30
| Resistance class | Max. leaf dimensions (W × H) |
|
|
|
|
|
|---|---|---|---|---|---|---|
|

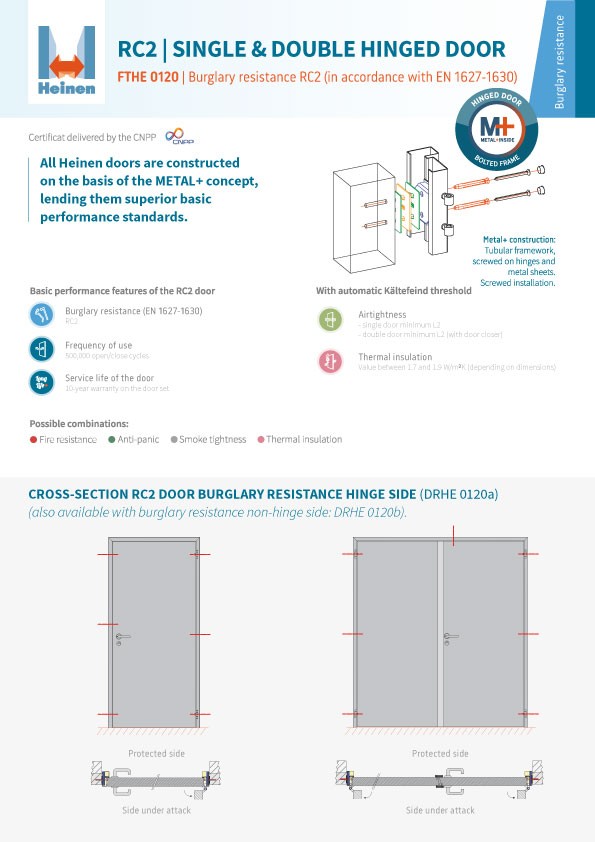

RC2 |
SINGLE LEAF DOUBLE LEAF |
2450 x 5000 2450 x 5000 |
UP TO EI₂ 180 EI₂ 30, 60, 90, 120 |
UP TO FB4 |
UP TO 54 dB |
v |
|
RC3 |
SINGLE LEAF DOUBLE LEAF |
2450 x 5000 2450 x 5000 |
UP TO EI₂ 180 EI₂ 30, 60, 90, 120 |
UP TO FB4 |
UP TO 54 dB |
v |
|

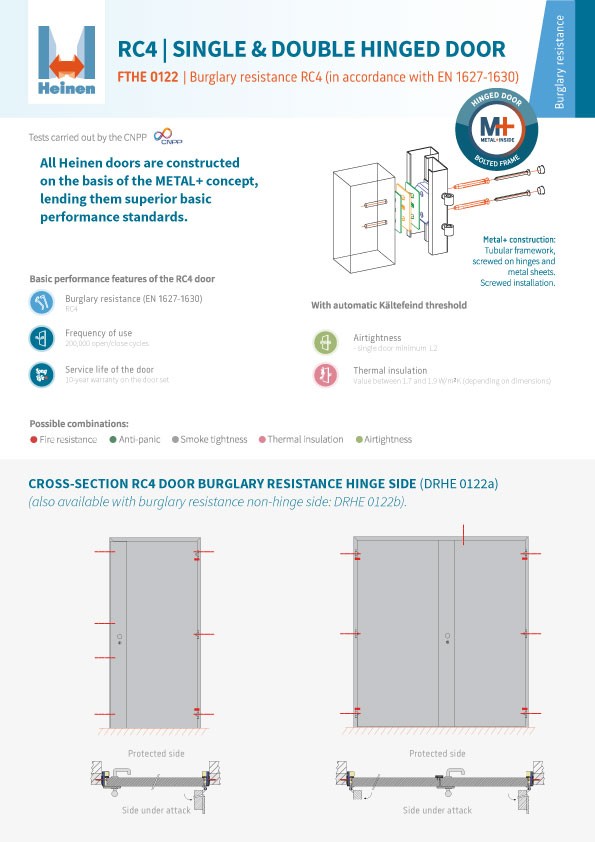

RC4 |
SINGLE LEAF DOUBLE LEAF |
1450 x 3035 1450 x 3035 |
UP TO EI₂ 120 EI₂ 30, 60, 90 |
UP TO FB6 AK47,FB4,FB5 |
UP TO 54 dB |
v |
|

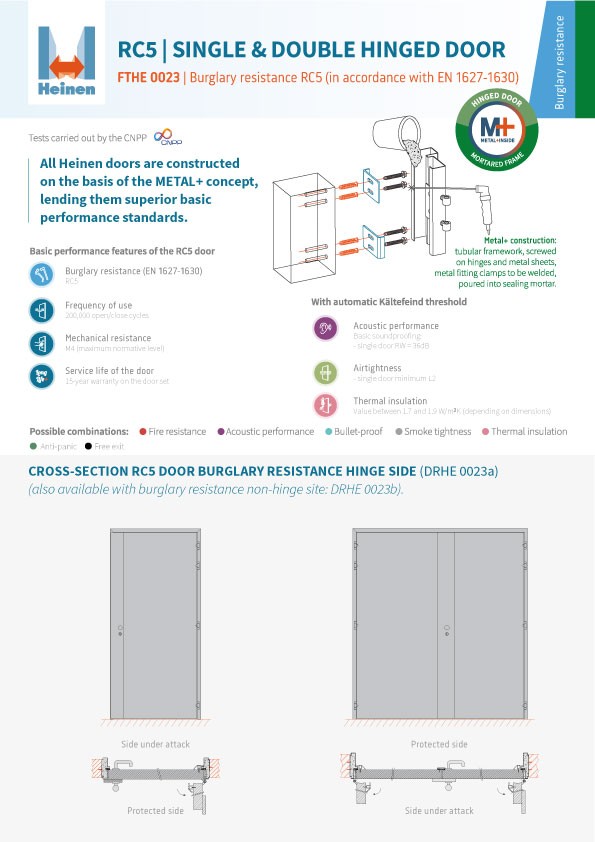

RC5 |
SINGLE LEAF DOUBLE LEAF |
1300 x 3000 1300 x 3000 |
UP TO EI₂ 60 EI₂ 30 |
UP TO FB6 AK47,FB4,FB5 |
N/A |
v |
Hinged doors (mortared frame) – LPS1175
| Resistance class | Max. leaf dimensions (W × H) |
|
|
|
|
|
|---|---|---|---|---|---|---|
|
D10 |
SINGLE LEAF DOUBLE LEAF |
1510 x 3035 1510 x 3035 |
UP TO EI₂ 120 EI₂ 30, 60, 90 |
UP TO FB6 AK47,FB4,FB5 |
UP TO 54 dB |
v |
|
E10 |
SINGLE LEAF DOUBLE LEAF |
1300 x 3000 1300 x 3000 |
UP TO EI₂ 60 EI₂ 30 |
UP TO FB6 AK47,FB4,FB5 |
N/A |
v |
|
E20 |
SINGLE LEAF |
1300 x 3000 |
UP TO EI₂ 60 EI₂ 30 |
UP TO FB6 AK47,FB4,FB5 |
N/A |
v |
Not yet certified — certification by BRE in progress

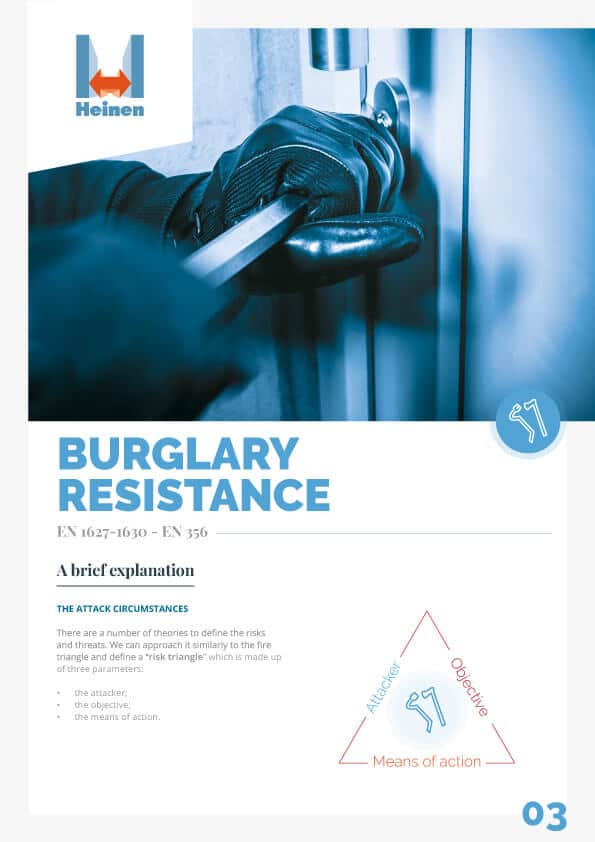

Burglar resistant
The term “resistance to burglary” is commonly used in the security field, but it is important to clarify that referring to a “burglary-resistant door” is not entirely accurate. It would be more correct to talk about a “burglary delay device”. Indeed, the means used (tools of attack) to force access to the protected area are always linked to two factors: the time allowed for the intruder and their level of experience. Therefore, the effectiveness of a security system largely depends on its ability to delay the burglary, thus providing enough time to trigger alarms and alert authorities or the property owners.
The tools used for burglary vary, ranging from simple manual tools to sophisticated machines like power drills and bolt cutters. Each device has a different capacity to penetrate a protected area, but all are limited by the time during which the intruder can work without being detected. This means that the burglary delay device plays a crucial role: the longer the resistance time, the higher the chances of capturing the intruder.
This is why security doors must be designed to effectively delay attacks. The materials, technologies, and certifications of burglary delay doors play a vital role in creating secure solutions that comply with strict standards. Advanced locking systems, combined with robust and high-performance materials, significantly slow down intrusions, thus enhancing the security of sensitive areas such as commercial buildings, industrial sites, or storage spaces.
The performance of the Heinen burglary resistant door
In an environment where intrusion threats are increasing, the protection of sensitive infrastructure and industrial sites requires cutting-edge solutions. Heinen burglary resistant doors are a major asset in effectively countering burglary attempts or targeted intrusions. Designed to withstand prolonged assaults, they offer a superior level of security and provide intervention teams with valuable time in the event of an attack.
Thanks to robust materials and high-performance locking systems, Heinen burglary resistant doors ensure proven long-term durability. Their reinforced structure and internal shielding mechanisms prevent or delay unauthorized access, even when specific tools are used by intruders. Whether protecting an industrial site, a data center, or any other high-risk location, Heinen doors meet the most demanding security standards (EN 1627-1630).
Heinen burglary resistant doors come in several models and sizes to perfectly fit the layout of your premises. Whether you need sealed doors to combine acoustic or bulletproof performance, or simply screw-in doors, Heinen offers RC2, RC3, RC4, and RC5 burglary resistant doors.
By opting for high-performance, certified burglary resistant doors, you optimize the security of your industrial sites while ensuring the continuity of your operations. Choose advanced technology and protect your facilities sustainably with the solutions offered by Heinen.
Products available with burglary resistant performance
Doors with cumulative performance
In addition to their long protection life and particularly wide range of sizes, Heinen doors can be combined with other performance features “à la carte”. Depending on your needs, one or more performances can be added to the basic METAL+ door.
Basic performance of burglar resistant doors
Possible combinations
Acoustic
Blast-proof
Anti-panic
Fire resistance
Bullet-proof protection
View
our data sheets and BIM objects
Download the Heinen door specifications
You want to configure your doors combining bespoke performance features. You want to download BIM objects in various formats. Go to our Specifications and BIM section.
FAQs burglar proof doors
The cost of a Heinen burglar-resistant door varies widely based on specific project requirements. Pricing depends primarily on the door dimensions (width and height), the required Resistance Class (RC2 to RC5), and cumulative performance combinations (such as fire resistance or panic escape hardware). Contact Heinen Doors to request a project-specific quote.
In commercial security specifications, a “burglar-proof door” is technically referred to as a burglar-resistant door or intrusion-delay doorset. No door is impenetrable; its effectiveness is measured by how long it can delay an intruder. Heinen burglary doors are engineered to provide maximum delay times, certified under European standards EN 1627-1630 to allow security teams or authorities enough time to intervene.
Yes. For high-risk environments, Heinen’s Metal+ Inside steel construction is superior. Unlike wood or standard aluminium, our mechanically assembled steel structure prevents warping and offers internal shielding that resists heavy mechanical impacts and sophisticated breaching tools.
Yes. Heinen supplies certified anti-burglary doors with glass panels and fully glazed frames. By combining high-performance laminated security glass with our reinforced steel profile system, the glazed vision panel matches the structural integrity of the door leaf, offering clear visibility without compromising your RC2 to RC5 rating.
Yes. The core advantage of the Heinen Metal+ concept is multi-risk capability. On a single steel door frame, you can combine burglar resistance (up to RC5) with fire resistance (up to EI 240), bullet resistance (up to FB7), acoustic insulation, and intensive-use durability without altering the external aesthetic.
Yes. Heinen specialises in combining high-level burglary resistance (up to RC4/RC5) with emergency escape hardware compliant with European standards EN 179 and EN 1125. Our engineered multi-point locking systems allow immediate emergency egress from the inside while maintaining maximum intrusion delay from the outside.
