Heinen bullet-proof doors
FB4, FB5, FB6, FB7 & AK47 (EN 1522-1523)
Unfortunately, firearms are becoming more widely used as tools of aggression:
- handguns (44 magnum, 357 magnum, colt, etc.)
- pump-action shotguns (type of riot gun)
- military weapons (Kalashnikovs, rifles, machine pistols, etc.)
Dimensions et performances cumulables
Portes battantes scellées
| Dimensions max. du vantail (L × H) |
|
|
|
|
||
|---|---|---|---|---|---|---|
|

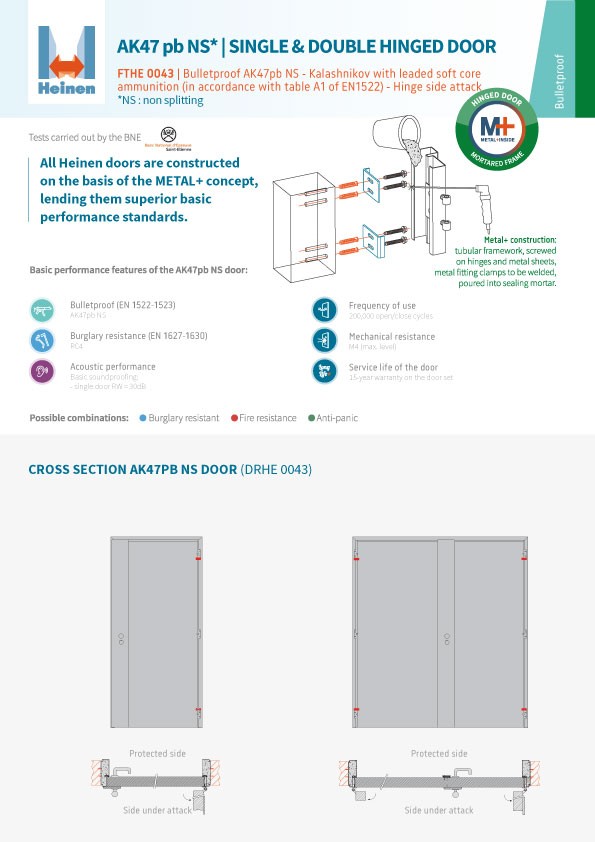

AK47 |
SIMPLE VANTRAIL DOUBLE VENTRAIL |
1450 x 3035 1450 x 3035 |
Jusqu’à CR4 |
Jusqu’à EI2 120 EI 30,EI 60,EI 90 |
Jusqu’à 54 dB* |
v |
|

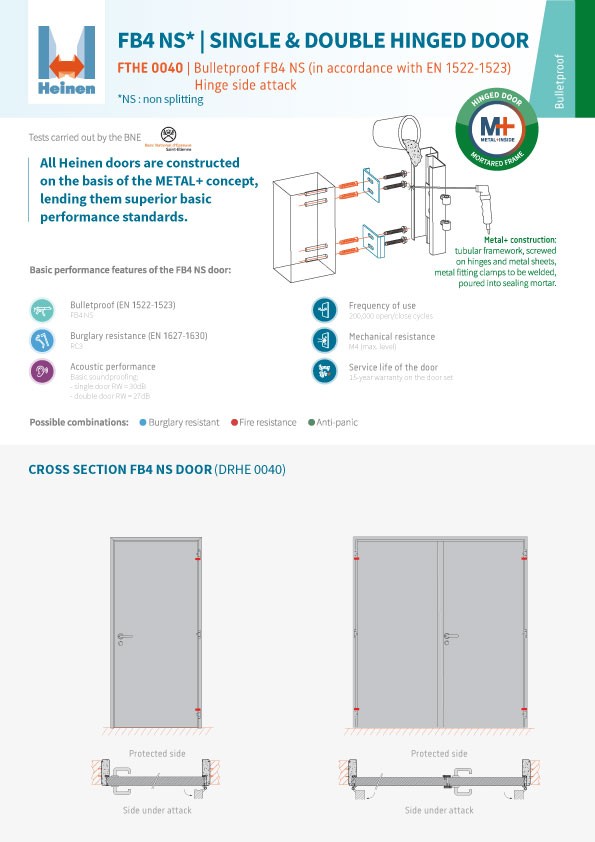

FB4 |
SIMPLE VANTRAIL DOUBLE VENTRAIL |
1450 x 3035 1450 x 3035 |
Jusqu’à CR4 CR3 |
Jusqu’à EI2 120 EI 30,EI 60,EI 90 |
Jusqu’à 54 dB* |
v |
|
FB5/FB6 |
SIMPLE VANTRAIL DOUBLE VENTRAIL |
1450 x 3035 1450 x 3035 |
Jusqu’à CR4 |
Jusqu’à EI2 60 EI 30 |
Jusqu’à 54 dB* |
v |
|
FB7 |
SIMPLE VANTRAIL |
1350 x 2950 |
— | — | — |
v |
| Dimensions max. du vantail (L × H) |
|
|
|
|
||
|---|---|---|---|---|---|---|
|
EI₂ 30 EI₂ 60 |
SIMPLE VANTAIL DOUBLE VANTAIL |
2175 x 4350 2175 x 4350 |
Sa, Sm (S200) |
JUSQU’À CR5 CR2, CR3, CR4 |
JUSQU’À 54 dB |
JUSQU’À FB6 AK 47, FB4, FB5 |
|
EI₂ 90 EI₂ 120 |
SIMPLE VANTAIL DOUBLE VANTAIL |
1425 x 3035 1800 x 3035 |
Sa, Sm (S200) |
JUSQU’À CR4 CR2, CR3 |
JUSQU’À 54 dB |
JUSQU’À FB4 AK 47 |
|
EI₂ 180 |
SIMPLE VANTAIL DOUBLE VANTAIL |
1280 x 2430 1280 x 2430 |
Sa, Sm (S200) |
JUSQU’À CR3 CR2 |
— |
SUR DEMANDE |
|
EI₂ 240 |
SIMPLE VANTAIL |
1450 x 2652 |
— | — | — | — |
* Certaines configurations peuvent nécessiter un avis de chantier
The performance of a bullet-proof door

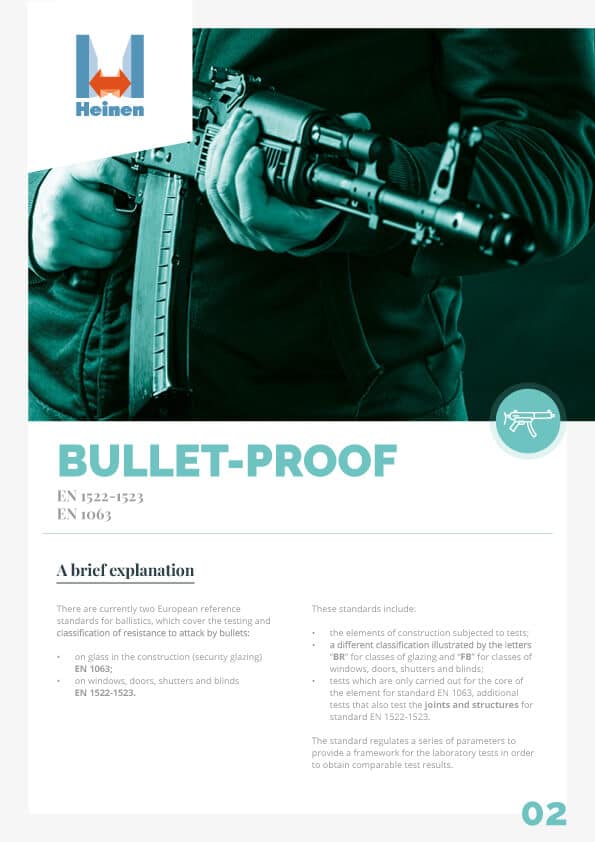

Bullet-proof doors are designed to provide optimal protection against armed attacks, in compliance with European standards EN 1522-1523. These standards define the bullet resistance testing for windows, doors, and other building elements, classifying products based on their ability to stop projectiles from various firearms. These doors, according to FB classes (FB1 to FB7), are capable of withstanding a wide range of ammunition, from handguns to powerful assault rifles.
During testing, each door is evaluated under strict parameters, including the impact of temperature, wind, and atmospheric pressure, to simulate real-world attack conditions. The seals, structure, and fixation points are also subjected to rigorous tests to ensure complete protection against armed intrusions. Depending on the desired level of security, the doors are available in several resistance classes (FB4, FB6, etc.), offering protection against weapons such as magnum calibers or semi-automatic rifles.
A range of armored doors resistant to break-ins and/or firearms has been developed, used in strategic sectors such as banks, luxury industries, military and defense, airports, embassies, and courtrooms.
Doors with cumulative performance

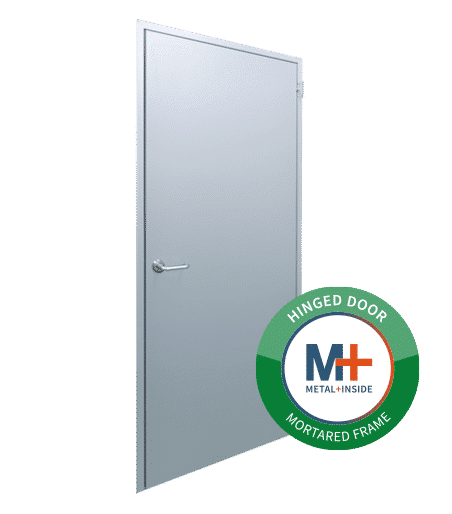

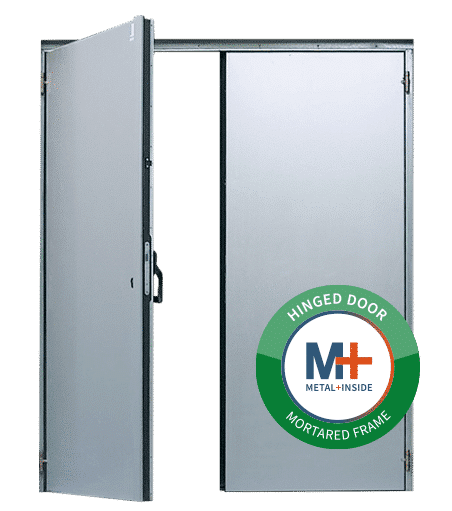

In addition to their long protection life and particularly wide range of sizes, Heinen doors can be combined with other performance features “à la carte”. Depending on your needs, one or more performances can be added to the basic METAL+ door.
Basic performance of bullet-proof doors
Possible combinations
Acoustic
Anti-panic
Fire resistance
View
our data sheets and BIM objects
Download the Heinen door specifications
You want to configure your doors combining bespoke performance features. You want to download BIM objects in various formats. Go to our Specifications and BIM section.
